Tuning your Akka to Get the Most from your Actor-Based System

This post is the second of a two-part series of articles on how to tune Akka configurations

Part I: Initial Akka Configurations
Part II: Gathering and analyzing Akka metrics with Kamon and stackable traits

Previously, we attempted to adjust Akka configurations for some possible use cases. After we set up a configuration and have a system up and running, we’d like to know how well we did and “re-tune” the configuration where needed.

Part-2: Gathering and analyzing Akka metrics with Kamon and stackable traits

This part focuses on Akka metrics, this refers to high-level data on the Akka Objects that we configured (i.e. Dispatchers, Routes, Actors (Routees), and Messages). We will consider how we gather them at Fyber and provide some useful tips.

Monitoring Tools for Akka

The Akka library does not include a native monitoring tool. However, there are a few tools that provide additional metrics for an Akka-based application (i.e. memory usage, trace information), profiling and further capabilities that help identify performance issues or identify a bottleneck.

To name a few:

‘Lightbend Monitoring’
Provides all necessary features, including key Akka metrics and span traces. Takipi plugin provides actor events that can trigger debug snapshots of the stack trace, i.e. the state at the time of the error. By the way… it’s not free…
Newrelic
A powerful performance monitoring and management framework, with Spray and Akka-Http instrumented features. However it’s most important feature, at least with regard to our purpose, the X-ray, which gives deeper insight into key transactions, is available only with a ‘Pro’ subscription.
Flame Graphs / VirtualVm or any other JVM profiling tool
Kamon

Kamon

Set out below are the main features of Kamon and it’s configuration abilities.

Overview

Kamon is an open source tool for monitoring applications running on the JVM. It supports various backends and has modules that integrate and gather metrics for Akka, Play, Spray/Akka-Http and more.

Kamon uses Aspectj to add a layer of code before and after a method is executed, and in this aspect- oriented fashion records metrics data (e.g. Records time before and after processing of messages/futures/routing (See Appendix).

Here at Fyber we use Kamon to gather all metrics, including application custom metrics, even in applications that do not use Akka, because it proves to perform better (CPU wise) than other alternatives.

It contains metric types functionalities such as .histogram(..), .counter(..), .gauge(..) and .minMaxCounter(..)

Configuration for Kamon Akka metrics

Akka integration has a collection of metrics for actor, router and dispatcher objects. They are all collected in our Exchange server. Soon enough our monitoring tools, Prometheus and Datadog went down/froze as a result of a crazy load of metrics. The reason is that we have 1000 to 1500 Actor instances. The names of the metrics include the instance name (it is not a Tag as you might expect). We do have our own tags including ‘environment’ and ‘host’ and ~600 Exchange instances. From there you get the vast number of metrics that our monitors could not handle.

In addition, the ‘aspect’ way of gathering metric’s data is quite expensive, performance-wise.

Our metric configuration looks like this:

As you may notice, we exclude akka-actor, which means all routees metrics (time-in-mailbox, processing-time, mailbox-size), and gather metrics for actors ourselves.

This is because:

Routees metrics outnumbered all the others combined, since we have lots of actor instances, and we desperately needed our monitors to be up and running…
We don’t really mind about a single routee in pretty much all cases, so gathered information such as average, sum, 95 can do the trick
The metrics’ names are somewhat awkward (partially because the name of the routees appears as $a $b… and naming them requires them to be created explicitly in the code)
We know the names of our actors and have a foothold in our own actor’s code, so we could easily gather metrics ourselves, and with a more concise information. In addition, we wanted metrics about the messages, processing time and the time it took the message to arrive.

Tips

When you route manually, meaning when you don’t have a router, or whenever you have created the routees explicitly, you can give them names yourself (see actorOf parameters).
Akka does not provide an API to know the size of the mailbox. Instead, you can monitor by:

Having a message counter (in the same way that Kamon does)
Override the MessageQueue. Google it.

Configuration for Kamon Akka ActorSystem

As stated, the aspectj operated by Kamon is quite expensive, even when excluding all routees metrics. By default, Kamon uses the default-dispatcher. If you don’t set a default-dispatcher yourself, the threadpool size of the default-dispatcher is the number of cores. In practice, Kamon told us that about 75% of the running threads were Kamon’s..

You can set a dispatcher for Kamon as follows:

Here we allow up to two threads (but only one would probably be enough), with a parallelism-factor of 0.25, meaning up to two threads when the machine has at least eight cores. This does the job.

‍

Monitor with Stackable Actor Traits

We like to collect aggregated data for the routees and messages.

To monitor time-in-mailbox, processing-time and mailbox-size that we excluded from the Kamon metric configuration, we must monitor ‘around’ the message processing, i.e. around the ‘receive’ method

It can be achieved by imitating Kamon’s usage of Aspectj as we just saw. However, we use stackable-traits mixed with the Actors, for a monitoring layer around ‘receive’.

I wrote about the stackable traits pattern. In Part II, I described (a simplified version of) how we use stackable actor traits at Inneractive, with code samples.

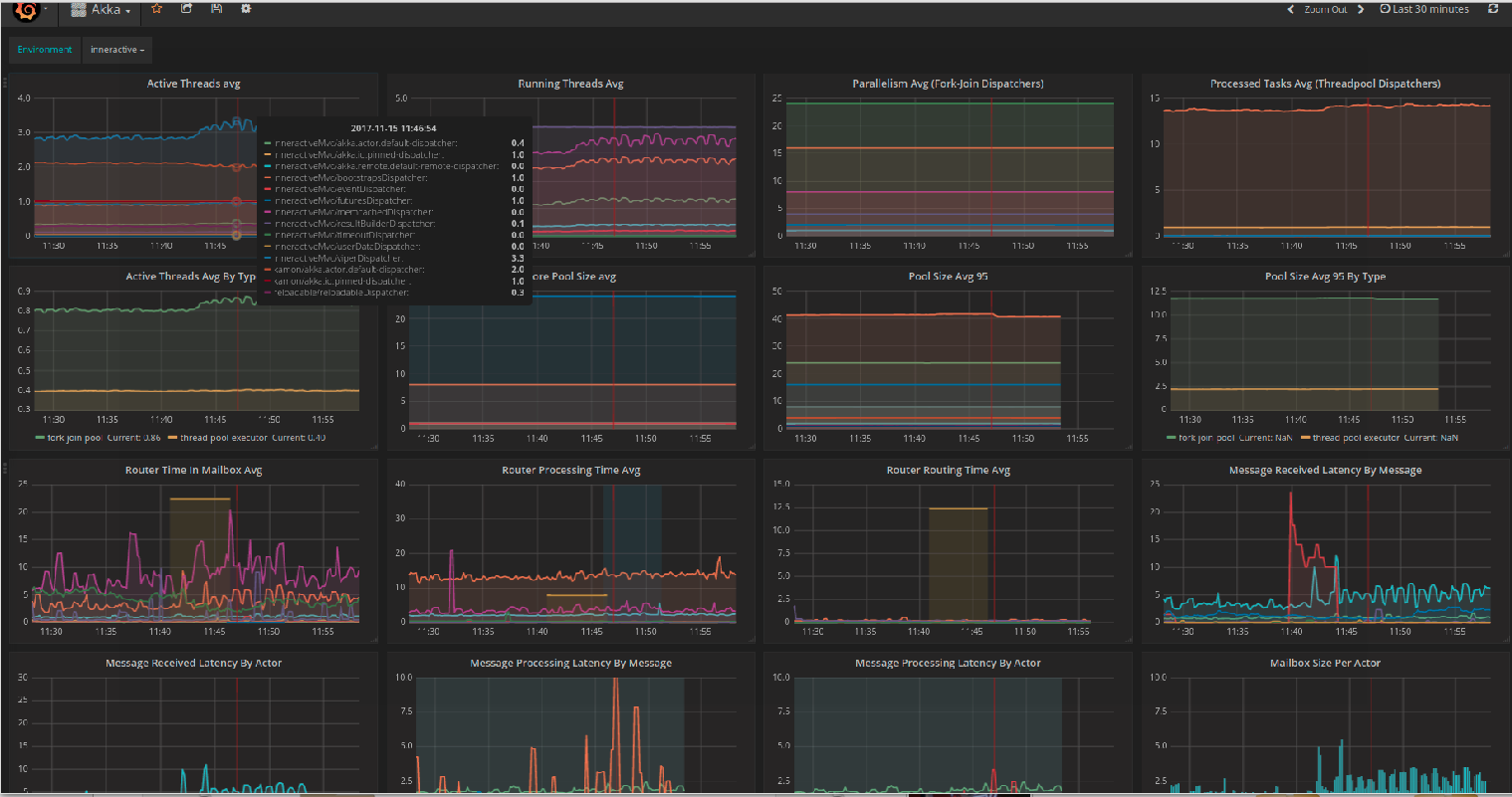

Dashboard Overview

Our dashboard consists of Kamon’s Akka metrics and custom metrics.

Akka metrics collection is explained in detail in the docs

Among all metrics, put special attention to:

‘active-threads’ and ‘running-threads’ – These give a very good view of your threads distribution so you can tune the dispatcher’s configuration if needed
‘pool-size’ – When you set upper, lower and increment factor and not a fixed size. This tells you how many threads are allocated in the pool, in practice.
‘processed-tasks’ – How busy is the executor, maybe more threads are needed
‘routing-time’ – Indicates if the routing strategy fits.
Custom metrics – ‘time-in-mailbox by actor/message’ for routees. Maybe a specific message handling is causing the problem.
Custom metrics ‘message-start-process’ for routees – When the value is high, it can indicate that the receiver needs more resources or there are too many instances. This leads to lots of context-switches. An increase of the “throughput” parameter may help.

Wrapping up

Monitoring of the Akka objects plays an important and integral part of the tuning step (and is generally important for keeping track of the system behavior).

There are various tools and ways to do so, Kamon is friendly and recommended, and you can gather the metrics yourself.
